python实现子网自动划分

基于python，实现IPv4/IPv6子网自动划分小工具

以下代码，仅限于个人研究学习使用，可以实现常见的子网划分，可以导出为csv格式，满足日常工作需要。请勿用于非法用途，若有非法使用，本人概不负责。

个人产生这个需求的情景：出于尊重版权的考虑，我想开发一个程序，可以满足个人在网络规划，划分子网方面的一些需求。IPv4有VLSM划分和等长划分2种方法，来划分子网；IPv6只有等长划分这1种划分子网的方法。经过一番查找答案，使用AI，询问AI，最终得到了一个基本可用的如下代码，可以满足基本使用需求。仅限于个人研究学习使用，请勿用作非法用途。

使用说明：

最大子网划分个数为10000个，matplotlib绘图展示为50个。

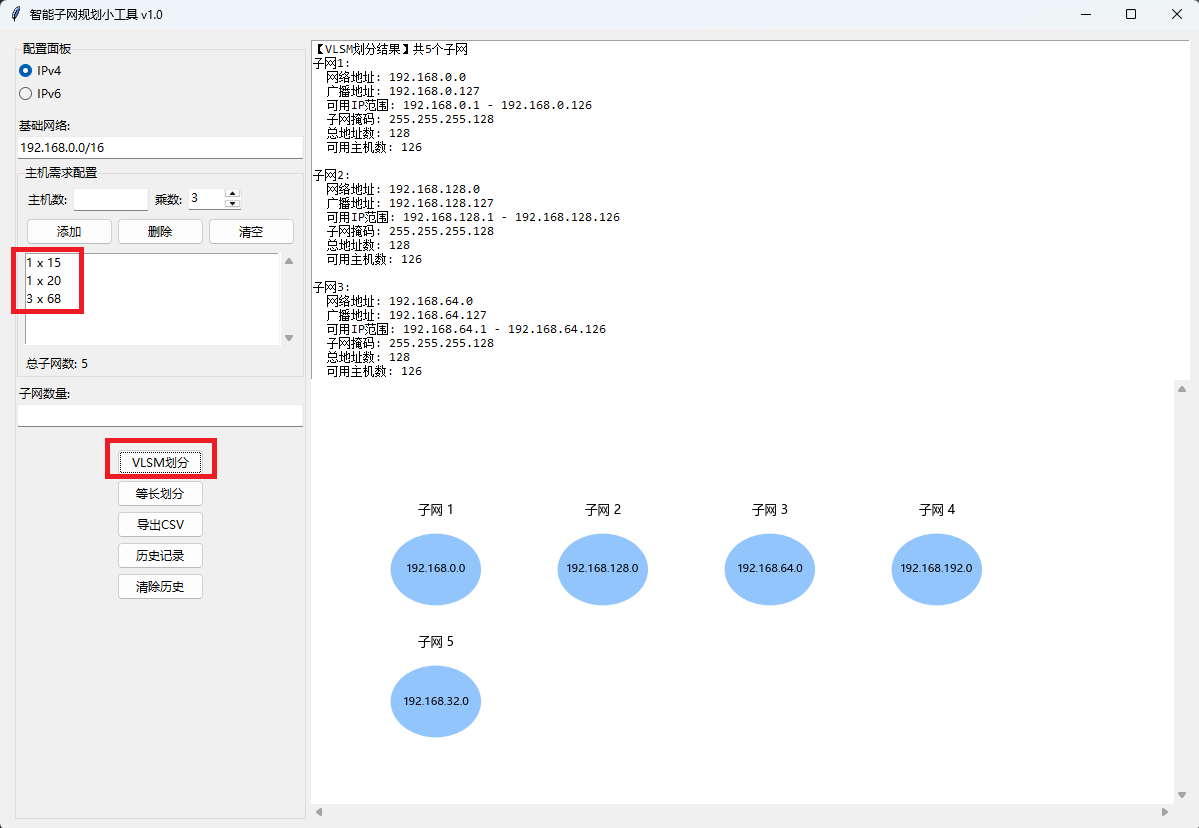

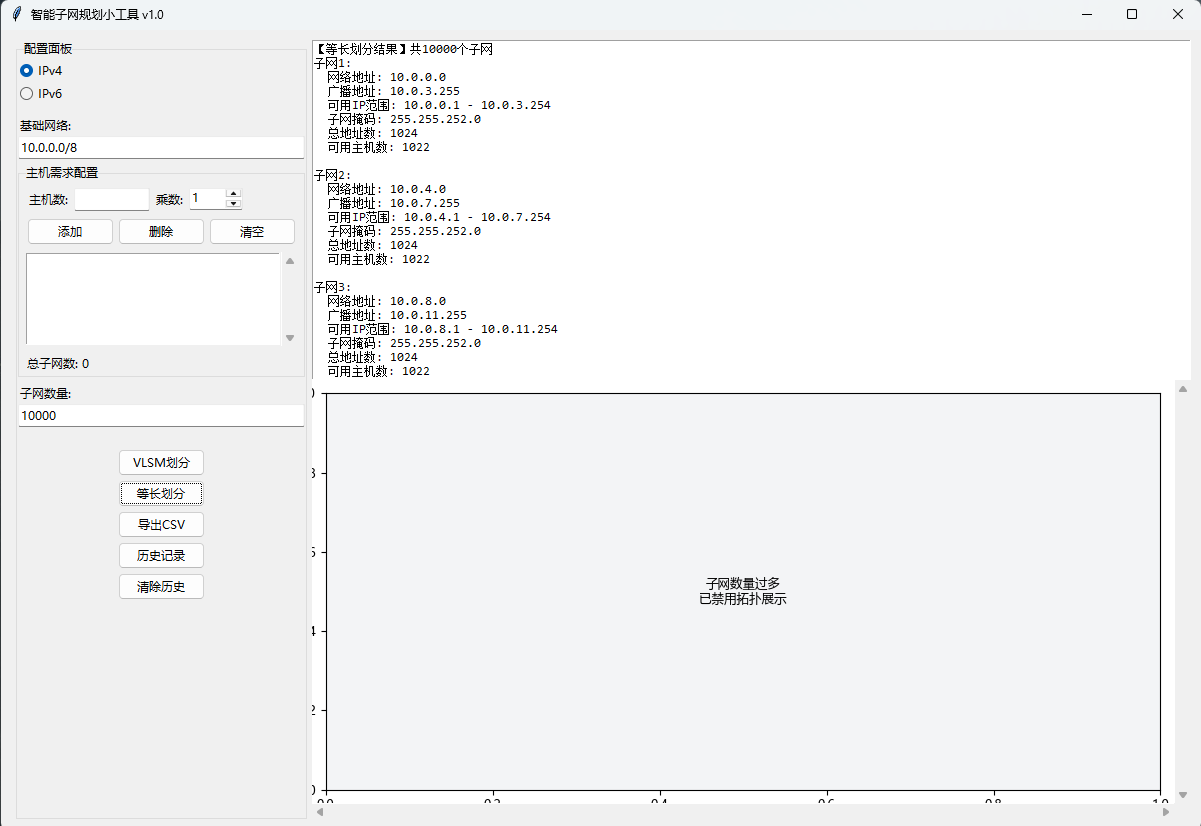

ipv4使用示例截图：

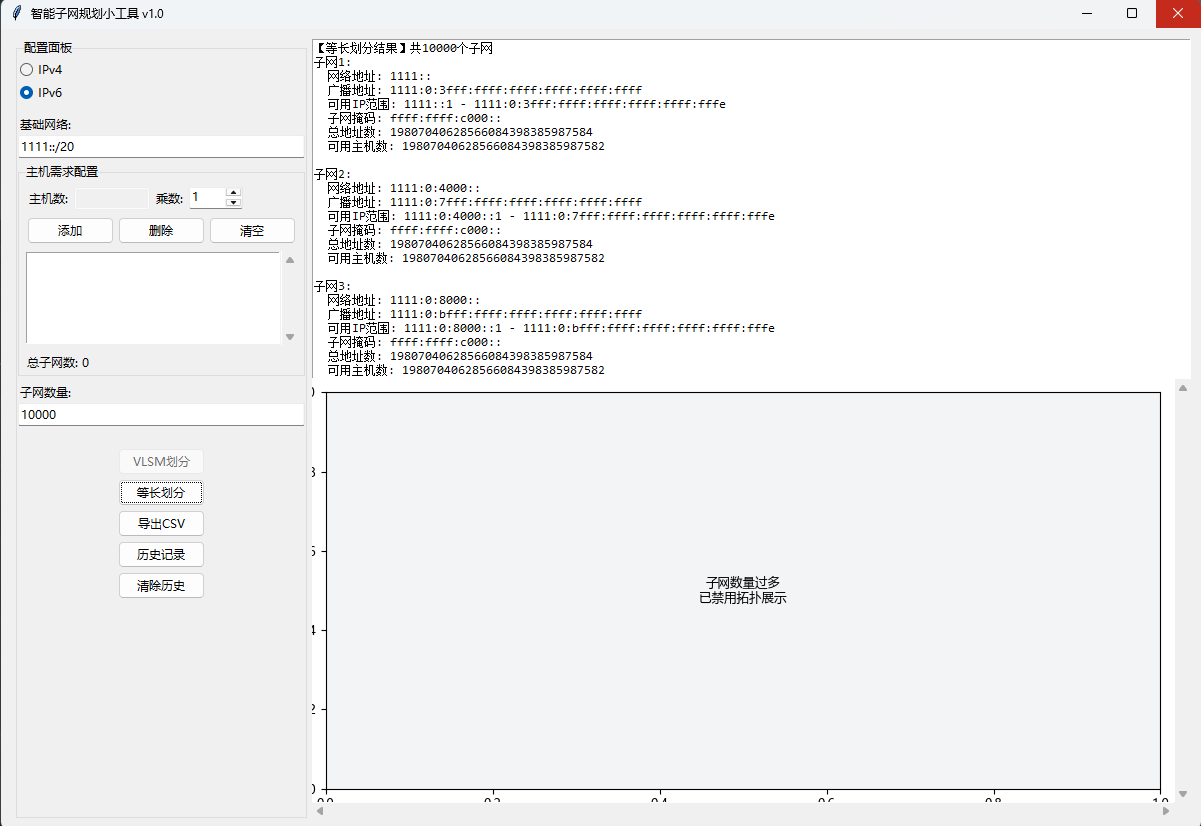

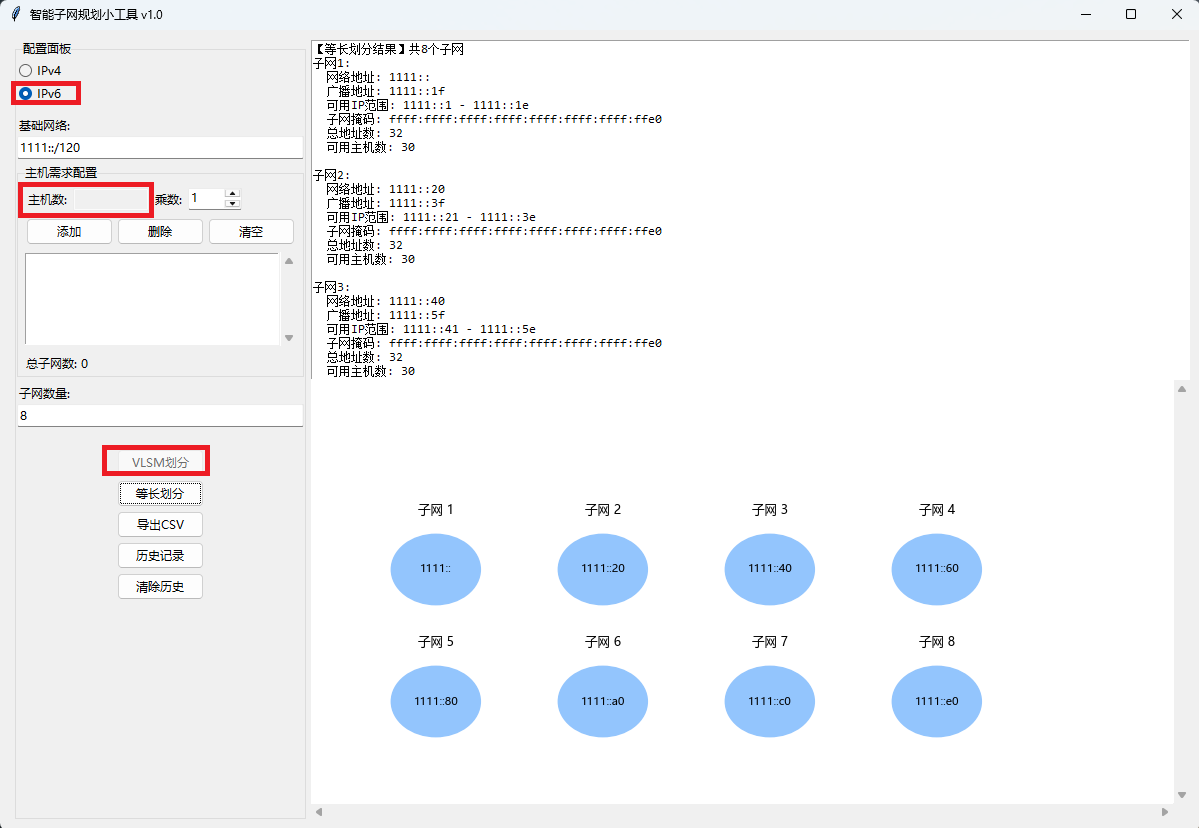

ipv6使用示例截图：

python安装：

去python官网，下载并安装python可执行程序。

依赖安装：

pip install matplotlib psutil

基本可用代码如下：

import tkinter as tk
from tkinter import ttk, messagebox, filedialog, Scrollbar
import ipaddress
import csv
import json
from datetime import datetime
import matplotlib.pyplot as plt
from matplotlib.backends.backend_tkagg import FigureCanvasTkAgg
import sys
from itertools import islice
import psutil
import matplotlib as mpl
if mpl.__version__ >= '3.4':
    mpl.rcParams['font.family'] = 'sans-serif'
    mpl.rcParams['font.sans-serif'] = ['Microsoft YaHei', 'SimHei']
else:
    mpl.rc('font', **{
        'family': 'sans-serif',
        'sans-serif': ['Microsoft YaHei', 'SimHei']
    })

class SubnetCalculatorPro(tk.Tk):
    def __init__(self):
            super().__init__()
            # 提前设置Matplotlib全局参数
            self._configure_matplotlib()
            self.title("智能子网规划小工具 v1.0")
            self.geometry("1200x800")
            self.history_file = "subnet_history.json"
            self.current_data = []
            self._init_ui()
            self._load_history()
            self.host_requirements = []  # 初始化主机需求列表
            #self._check_fonts()  # 新增字体检测


    def _configure_matplotlib(self):
        """深度配置中文显示"""
        plt.rcParams.update({
            'font.sans-serif': ['Microsoft YaHei', 'SimHei'],  # 双保险字体配置
            'axes.unicode_minus': False,
            'font.size': 9,
            'figure.titlesize': 12,
            'axes.labelsize': 10
        })

    def _init_ui(self):
        # 主容器
        main_frame = ttk.Frame(self)
        main_frame.pack(fill=tk.BOTH, expand=True, padx=10, pady=10)

        # 控制面板
        control_frame = ttk.LabelFrame(main_frame, text="配置面板")
        control_frame.pack(side=tk.LEFT, fill=tk.Y, padx=5)

        # IP版本选择
        self.ip_version = tk.StringVar(value="IPv4")
        ttk.Radiobutton(control_frame, text="IPv4", variable=self.ip_version,
                       value="IPv4", command=self._toggle_ip_version).pack(anchor=tk.W)
        ttk.Radiobutton(control_frame, text="IPv6", variable=self.ip_version,
                       value="IPv6", command=self._toggle_ip_version).pack(anchor=tk.W)

        # 输入组件
        input_group = ttk.Frame(control_frame)
        input_group.pack(pady=10, fill=tk.X)

        ttk.Label(input_group, text="基础网络:").pack(anchor=tk.W)
        self.network_entry = ttk.Entry(input_group, width=25)
        self.network_entry.pack(fill=tk.X)

        # 主机需求输入区域
        host_frame = ttk.LabelFrame(input_group, text="主机需求配置")
        host_frame.pack(fill=tk.X, pady=5)

        host_input_frame = ttk.Frame(host_frame)
        host_input_frame.pack(fill=tk.X, padx=5, pady=5)

        ttk.Label(host_input_frame, text="主机数:").grid(row=0, column=0, padx=2)
        self.host_count_entry = ttk.Entry(host_input_frame, width=10)
        self.host_count_entry.grid(row=0, column=1, padx=2)

        ttk.Label(host_input_frame, text="乘数:").grid(row=0, column=2, padx=2)
        self.host_multiplier = ttk.Spinbox(host_input_frame, from_=1, to=100, width=5)
        self.host_multiplier.grid(row=0, column=3, padx=2)
        self.host_multiplier.set("1")


        # 添加按钮和列表框
        btn_frame = ttk.Frame(host_frame)
        btn_frame.pack(fill=tk.X, padx=5, pady=2)

        ttk.Button(btn_frame, text="添加", command=self._add_host_requirement).grid(row=0, column=0, padx=2)
        ttk.Button(btn_frame, text="删除", command=self._remove_host_requirement).grid(row=0, column=1, padx=2)
        ttk.Button(btn_frame, text="清空", command=self._clear_requirements).grid(row=0, column=2, padx=2)

        # 需求列表框
        list_frame = ttk.Frame(host_frame)
        list_frame.pack(fill=tk.BOTH, expand=True, padx=5, pady=5)

        self.requirements_listbox = tk.Listbox(list_frame, height=5)
        self.requirements_listbox.pack(side=tk.LEFT, fill=tk.BOTH, expand=True)

        # 添加滚动条
        scrollbar = ttk.Scrollbar(list_frame, orient="vertical", command=self.requirements_listbox.yview)
        scrollbar.pack(side=tk.RIGHT, fill=tk.Y)
        self.requirements_listbox.config(yscrollcommand=scrollbar.set)

        # 添加需求汇总标签
        self.summary_label = ttk.Label(host_frame, text="总子网数: 0")
        self.summary_label.pack(anchor=tk.W, padx=5, pady=2)

        # 保留原有的子网数量输入
        ttk.Label(input_group, text="子网数量:").pack(anchor=tk.W)
        self.subnet_count_entry = ttk.Entry(input_group)
        self.subnet_count_entry.pack(fill=tk.X)

        # 操作按钮
        btn_group = ttk.Frame(control_frame)
        btn_group.pack(pady=10)

        # 修改后的按钮创建部分
        self.vlsm_btn = ttk.Button(btn_group, text="VLSM划分", command=self._vlsm_subnetting)
        self.vlsm_btn.grid(row=0, column=0, pady=2)
        ttk.Button(btn_group, text="等长划分", command=self._equal_subnetting).grid(row=1, column=0, pady=2)
        ttk.Button(btn_group, text="导出CSV", command=self._export_csv).grid(row=2, column=0, pady=2)
        ttk.Button(btn_group, text="历史记录", command=self._show_history).grid(row=3, column=0, pady=2)
        ttk.Button(btn_group, text="清除历史", command=self._clear_history).grid(row=4, column=0, pady=2)

        # 结果展示区
        result_frame = ttk.Frame(main_frame)
        result_frame.pack(side=tk.RIGHT, fill=tk.BOTH, expand=True)

        # 文字结果
        self.result_text = tk.Text(result_frame, wrap=tk.WORD, font=('Consolas', 9))
        self.result_text.pack(side=tk.TOP, fill=tk.X)

        # 拓扑可视化区域（修改部分）
        self.figure = plt.Figure(figsize=(6,4))  # 独立创建figure
        self.ax = self.figure.add_subplot(111)   # 显式创建axes
        self.ax.grid(True, linestyle='--', alpha=0.7)
        self.ax.set_facecolor('#F3F4F6')

        # 创建画布容器
        plot_container = ttk.Frame(result_frame)
        plot_container.pack(side=tk.TOP, fill=tk.BOTH, expand=True)  # 关键修改点

        # 创建画布时应指定父容器为plot_container
        self.canvas = FigureCanvasTkAgg(self.figure, plot_container)
        canvas = self.canvas.get_tk_widget()

        # 添加滚动条
        scroll_y = Scrollbar(plot_container, orient="vertical", command=canvas.yview)
        scroll_x = Scrollbar(plot_container, orient="horizontal", command=canvas.xview)
        canvas.configure(yscrollcommand=scroll_y.set, xscrollcommand=scroll_x.set)

        # 统一使用grid布局
        canvas.grid(row=0, column=0, sticky="nsew")
        scroll_y.grid(row=0, column=1, sticky="ns")
        scroll_x.grid(row=1, column=0, sticky="ew")

        # 设置容器权重
        plot_container.rowconfigure(0, weight=1)
        plot_container.columnconfigure(0, weight=1)

    def _add_host_requirement(self):
        """添加主机需求到列表"""
        try:
            host_count = int(self.host_count_entry.get())
            multiplier = int(self.host_multiplier.get())

            if host_count <= 0:
                messagebox.showerror("输入错误", "主机数量必须大于0")
                return

            if multiplier <= 0:
                messagebox.showerror("输入错误", "乘数必须大于0")
                return

            # 添加到列表框，格式改为：数量 x 主机数
            self.requirements_listbox.insert(tk.END, f"{multiplier} x {host_count}")
            self.host_count_entry.delete(0, tk.END)  # 清空输入框
            self.host_count_entry.delete(0, tk.END)  # 清空输入框
            self._update_requirements_summary()  # 更新汇总信息


        except ValueError:
            messagebox.showerror("输入错误", "请输入有效的数字")


    def _remove_host_requirement(self):
        """从列表中删除选中的主机需求"""
        selected = self.requirements_listbox.curselection()
        if selected:
            self.requirements_listbox.delete(selected)
            self._update_requirements_summary()  # 更新汇总信息
        else:
            messagebox.showinfo("提示", "请先选择要删除的项")

    def _clear_requirements(self):
        """清空主机需求列表"""
        if messagebox.askyesno("确认", "确定要清空所有主机需求吗？"):
            self.requirements_listbox.delete(0, tk.END)
            self._update_requirements_summary()  # 更新汇总信息
            messagebox.showinfo("成功", "主机需求已清空")

    def _update_requirements_summary(self):
        """更新需求汇总信息"""
        total_subnets = 0
        for i in range(self.requirements_listbox.size()):
            item = self.requirements_listbox.get(i)
            parts = item.split('x')
            count = int(parts[0].strip())
            total_subnets += count

        # 可以在界面上显示总需求数
        if hasattr(self, 'summary_label'):
            self.summary_label.config(text=f"总子网数: {total_subnets}")



    def _toggle_ip_version(self):
        """切换IP版本时的界面更新"""
        current_version = self.ip_version.get()
        if current_version == "IPv6":
            self.host_count_entry.state(['disabled'])  # 修改为正确的变量名
            self.vlsm_btn.state(['disabled'])  # 新增禁用VLSM按钮
        else:
            self.host_count_entry.state(['!disabled'])  # 修改为正确的变量名
            self.vlsm_btn.state(['!disabled'])  # 恢复启用


    def _validate_network(self):
        """验证网络地址输入"""
        try:
            if self.ip_version.get() == "IPv4":
                return ipaddress.IPv4Network(self.network_entry.get().strip(), strict=False)
            return ipaddress.IPv6Network(self.network_entry.get().strip(), strict=False)
        except ValueError as e:
            messagebox.showerror("输入错误", f"无效网络格式：{str(e)}")
            return None
    def _vlsm_subnetting(self):
        """VLSM动态划分核心逻辑（支持IPv6）"""
        process = psutil.Process()
        if process.memory_info().rss > 500 * 1024 * 1024:  # 500MB限制
            raise MemoryError("内存使用超过安全阈值")
        network = self._validate_network()
        if not network: return

        try:
            # 从列表框获取主机需求
            requirements = []
            for i in range(self.requirements_listbox.size()):
                item = self.requirements_listbox.get(i)
                # 解析格式：数量 x 主机数
                parts = item.split('x')
                count = int(parts[0].strip())
                hosts = int(parts[1].strip())
                # 添加多个相同的主机需求
                requirements.extend([hosts] * count)

            if not requirements:
                messagebox.showwarning("警告", "请先添加主机需求")
                return


            subnet_count = len(requirements)  # 新增关键行
            MAX_SUBNETS = 10000

            if subnet_count > MAX_SUBNETS:
                raise ValueError(f"子网数量超过最大限制{MAX_SUBNETS}")
            self._validate_vlsm(network, requirements)
            sorted_hosts = sorted(requirements, reverse=True)
            subnets = []
            # 在最终显示前确保是完整列表
            self._display_result(subnets, "VLSM")
            self._update_topology(subnets)

            available_networks = [network]  # 初始化可用网络块列表

            for hosts in sorted_hosts:
                required_ips = hosts + 2
                prefix = 128 if isinstance(network, ipaddress.IPv6Network) else 32
                prefix -= required_ips.bit_length()
                found = False

                # 遍历所有可用块（按地址空间从大到小排序）
                for i in range(len(available_networks)):
                    net = available_networks[i]
                    if net.prefixlen <= prefix:
                        subnet = next(net.subnets(new_prefix=prefix))
                        remaining = list(net.address_exclude(subnet))

                        # 更新可用网络块列表
                        del available_networks[i]
                        available_networks.extend(remaining)
                        # 关键修改点：使用父网络判断排序方向
                        available_networks.sort(
                            key=lambda net: net.num_addresses,
                            reverse=not isinstance(network, ipaddress.IPv6Network)
                        )

                        subnets.append(subnet)
                        found = True
                        break

                if not found:
                    raise ValueError(f"无法满足需求：{hosts}主机")

            self._display_result(subnets, "VLSM")
            self._update_topology(subnets)
            self._save_to_history({
                "type": "VLSM",
                "network": str(network),
                "requirements": requirements,
                "timestamp": datetime.now().isoformat()
            })

        except Exception as e:
            messagebox.showerror("计算错误", f"VLSM划分失败：{str(e)}")

    def _validate_vlsm(self, network, requirements):
        """VLSM需求验证"""
        total_required = sum(2**(req.bit_length()+1) for req in requirements)
        if total_required > network.num_addresses:
            raise ValueError(f"总需求({total_required})超过父网络容量({network.num_addresses})")




    def _equal_subnetting(self):
        """等长子网划分核心逻辑（支持IPv6）"""
        network = self._validate_network()
        if not network: return

        try:
            # 修复点1：先获取用户输入再验证
            subnet_count = int(self.subnet_count_entry.get())
            MAX_SUBNETS = 10000  # 移动验证位置到try块内部

            # 修复点2：添加最小值校验
            if subnet_count < 1:
                raise ValueError("子网数量不能小于1")

            if subnet_count > MAX_SUBNETS:
                raise ValueError(f"子网数量超过最大限制{MAX_SUBNETS}")

            required_bits = (subnet_count-1).bit_length()
            max_prefix = 126 if isinstance(network, ipaddress.IPv6Network) else 30
            new_prefix = network.prefixlen + required_bits

            if new_prefix > max_prefix:
                raise ValueError("子网数量超出地址空间容量")

            # 关键修复：生成器转列表
            subnets = list(islice(network.subnets(new_prefix=new_prefix), subnet_count))

            self._display_result(subnets, "等长")
            self._update_topology(subnets)
            self._save_to_history({
                "type": "等长",
                "network": str(network),
                "subnet_count": subnet_count,
                "timestamp": datetime.now().isoformat()
            })

        except ValueError as e:
            messagebox.showerror("输入错误", str(e))

    def _display_result(self, subnets, stype):
        """显示划分结果"""
        self.current_data = []  # 清空旧数据
        total_subnets = len(subnets)
        result = f"【{stype}划分结果】共{total_subnets}个子网\n"

        display_limit = 100  # 仅影响显示数量

        # 完整存储所有数据（关键修复点）
        for idx, subnet in enumerate(subnets, 1):
            data = {
                "子网": idx,
                "网络地址": str(subnet.network_address),
                "广播地址": str(subnet.broadcast_address),
                "可用范围": f"{subnet[1]} - {subnet[-2]}" if not subnet.is_unspecified else "N/A",
                "掩码": str(subnet.netmask),
                "总地址数": subnet.num_addresses,
                "可用主机": subnet.num_addresses - 2
            }
            self.current_data.append(data)  # 存储全部数据

            # 仅生成前100条的显示内容
            if idx <= display_limit:
                result += (
                    f"子网{idx}:\n"
                    f"  网络地址: {data['网络地址']}\n"
                    f"  广播地址: {data['广播地址']}\n"
                    f"  可用IP范围: {data['可用范围']}\n"
                    f"  子网掩码: {data['掩码']}\n"
                    f"  总地址数: {data['总地址数']}\n"
                    f"  可用主机数: {data['可用主机']}\n\n"
                )

        if total_subnets > display_limit:
            result += f"\n(界面已隐藏{total_subnets-display_limit}个子网，导出CSV可查看完整数据)"

        self.result_text.config(state=tk.NORMAL)
        self.result_text.delete(1.0, tk.END)
        self.result_text.insert(tk.END, result)
        self.result_text.config(state=tk.DISABLED)

    def _get_dynamic_font(self):
        """动态获取字体避免缓存问题"""
        from matplotlib.font_manager import FontProperties
        font_paths = [
            'C:/Windows/Fonts/msyh.ttc',    # 微软雅黑
            'C:/Windows/Fonts/simhei.ttf',  # 黑体
            '/usr/share/fonts/truetype/msttcorefonts/msyh.ttf'  # Linux备用路径
        ]

        for path in font_paths:
            try:
                return lambda size: FontProperties(fname=path, size=size)
            except:
                continue
        return lambda size: FontProperties(size=size)  # 降级处理

    def _update_topology(self, subnets):
        if not isinstance(subnets, list):  # 类型检查
            subnets = list(subnets)
        if len(subnets) > 50:  # 设置图表显示阈值
            self.ax.clear()
            self.ax.text(0.5, 0.5, "子网数量过多\n已禁用拓扑展示",
                        ha='center', va='center')
            self.canvas.draw_idle()
            return

        self.ax.clear()

        # 动态加载字体避免缓存问题
        cn_font = self._get_dynamic_font()

        # 计算最大坐标范围
        max_cols = 4
        rows = (len(subnets) + max_cols - 1) // max_cols
        max_x = max_cols * 3 - 1
        max_y = rows * 3 - 1

        # 生成拓扑图（关键修改点）
        for i, subnet in enumerate(subnets):
            col = i % max_cols
            row = rows - 1 - i // max_cols
            x = col * 3
            y = row * 3
            self.ax.add_patch(plt.Circle((x, y), 0.8, color='#93C5FD'))

            # 使用字体属性对象
            self.ax.text(
                x, y+1.2, f"子网 {i+1}",
                ha='center',
                va='bottom',
                fontproperties=cn_font(9)  # 动态字体
            )
            self.ax.text(
                x, y, f"{subnet.network_address}",
                ha='center',
                va='center',
                fontproperties=cn_font(8)
            )

        # 布局优化
        self.ax.set_xlim(-2, max_x + 2)
        self.ax.set_ylim(-2, max_y + 2)
        self.ax.axis('off')
        self.figure.tight_layout()
        self.canvas.draw_idle()

    def _check_fonts(self):
        """深度字体可用性检测"""
        from matplotlib.font_manager import fontManager, FontProperties

        required_glyphs = {
            '子': '\u5b50',
            '网': '\u7f51',
            '划': '\u5212'
        }

        missing = []
        for font in fontManager.ttflist:
            if 'YaHei' in font.name or 'SimHei' in font.name:
                for char_name, char in required_glyphs.items():
                    if not font.get_charmap().get(ord(char)):
                        missing.append(f"{char_name}({char})")
                if missing:
                    messagebox.showwarning(
                        "字体不完整",
                        f"当前字体 {font.name} 缺失字符: {', '.join(missing)}\n"
                        "建议安装完整版微软雅黑字体"
                    )
                    break

    def _get_cn_font(self, size=10):
        """获取中文字体属性"""
        from matplotlib.font_manager import FontProperties
        return FontProperties(
            fname='C:/Windows/Fonts/msyh.ttc',  # 微软雅黑绝对路径
            size=size
        )

    def _export_csv(self):
        """导出CSV文件"""
        if not self.current_data:
            messagebox.showwarning("警告", "没有可导出的数据")
            return

        file_path = filedialog.asksaveasfilename(
            defaultextension=".csv",
            filetypes=[("CSV Files", "*.csv")]
        )
        if file_path:
            try:
                # 修复点1：定义明确的字段列表
                field_names = ["子网", "网络地址", "广播地址", "可用范围",
                              "掩码", "总地址数", "可用主机"]

                with open(file_path, 'w', newline='', encoding='utf-8') as f:
                    writer = csv.DictWriter(f, fieldnames=field_names)
                    writer.writeheader()

                    # 修复点2：遍历当前数据而非生成器
                    for data in self.current_data:
                        writer.writerow({
                            '子网': data['子网'],
                            '网络地址': data['网络地址'],
                            '广播地址': data['广播地址'],
                            '可用范围': data['可用范围'],
                            '掩码': data['掩码'],
                            '总地址数': data['总地址数'],
                            '可用主机': data['可用主机']
                        })

                messagebox.showinfo("导出成功", f"文件已保存至：{file_path}")

            except PermissionError:
                messagebox.showerror("权限拒绝", "请关闭已打开的文件后再导出")
            except Exception as e:
                messagebox.showerror("导出错误", f"发生未知错误：{str(e)}")


    def _save_to_history(self, data):
        """保存到历史记录"""
        try:
            with open(self.history_file, 'a+') as f:
                f.seek(0)
                history = json.load(f) if f.read() else []
                history.append(data)
                f.seek(0)
                f.truncate()
                json.dump(history, f, indent=2)
        except:
            with open(self.history_file, 'w') as f:
                json.dump([data], f)

    def _load_history(self):
        """加载历史记录"""
        try:
            with open(self.history_file, 'r') as f:
                self.history = json.load(f)
        except (FileNotFoundError, json.JSONDecodeError):
            self.history = []

    def _show_history(self):
        """显示历史记录窗口"""
        history_win = tk.Toplevel(self)
        history_win.title("操作历史")

        tree = ttk.Treeview(history_win, columns=("type", "network", "time"), show="headings")
        tree.heading("type", text="类型")
        tree.heading("network", text="网络地址")
        tree.heading("time", text="操作时间")

        for record in self.history[-20:]:  # 显示最近20条
            tree.insert("", tk.END, values=(
                record.get('type', ''),
                record.get('network', ''),
                record.get('timestamp', '')
            ))

        tree.pack(fill=tk.BOTH, expand=True)

    def _clear_history(self):
        """清除历史记录"""
        if messagebox.askyesno("确认", "确定要清除所有历史记录吗？"):
            self.history = []
            with open(self.history_file, 'w') as f:
                f.write('')
            messagebox.showinfo("成功", "历史记录已清除")

if __name__ == "__main__":
    try:
        if sys.version_info < (3, 9):
            messagebox.showerror("版本错误", "IPv6功能需要Python 3.9+")
        else:
            app = SubnetCalculatorPro()
            app.mainloop()
    except Exception as e:
        messagebox.showerror("致命错误",
            f"程序初始化失败：{str(e)}\n"
            "请检查：\n"
            "1. Python版本是否为3.9+\n"
            "2. 依赖包是否安装正确\n"
            "3. 系统字体配置是否完整")

执行测试：

将上述代码，保存为subnet-tool.pyw文件。

将如下命令写入start.bat脚本文件，双击即可自动调用这个文件：

@echo off
cd /d "%~dp0"
start "" pythonw subnet-tool.pyw
